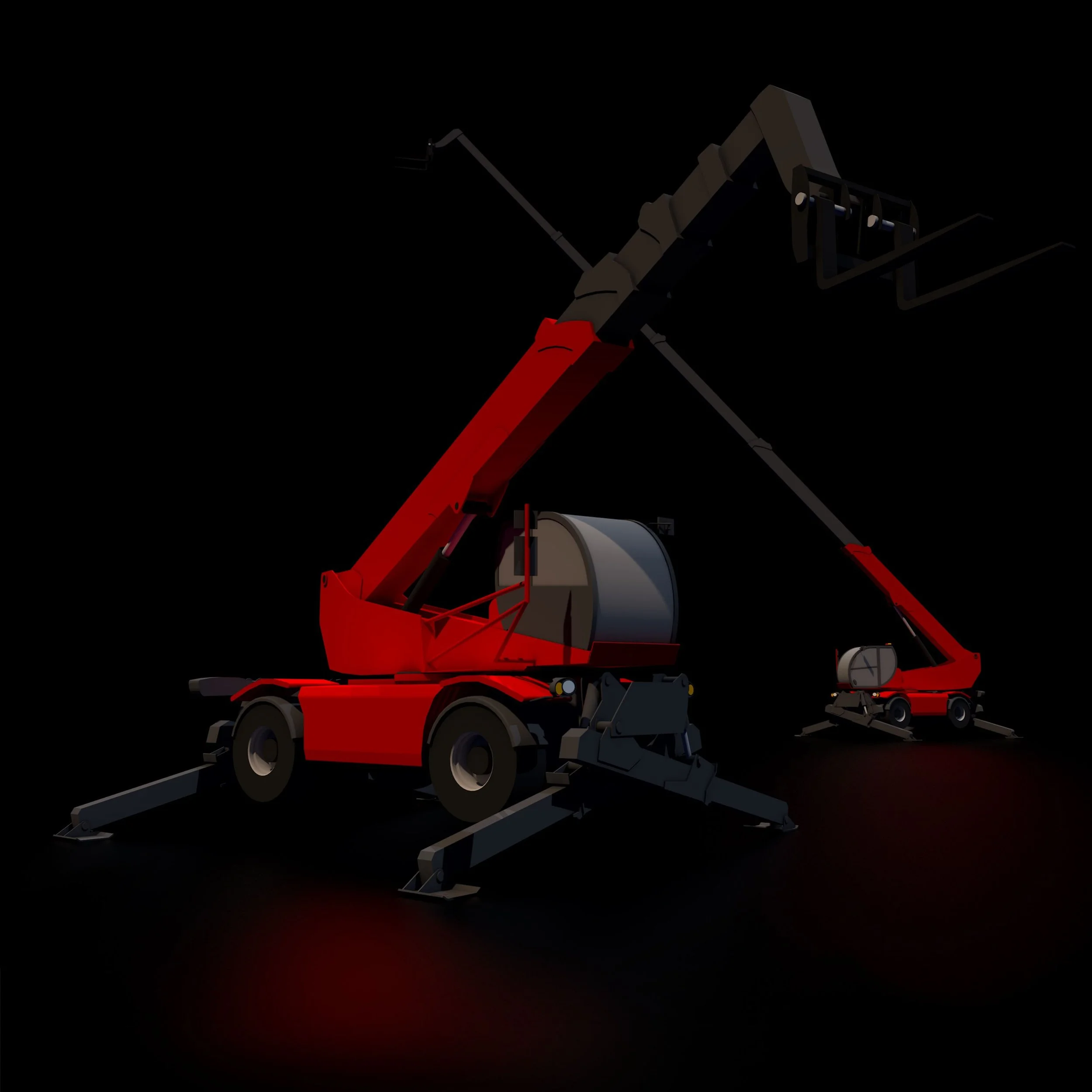

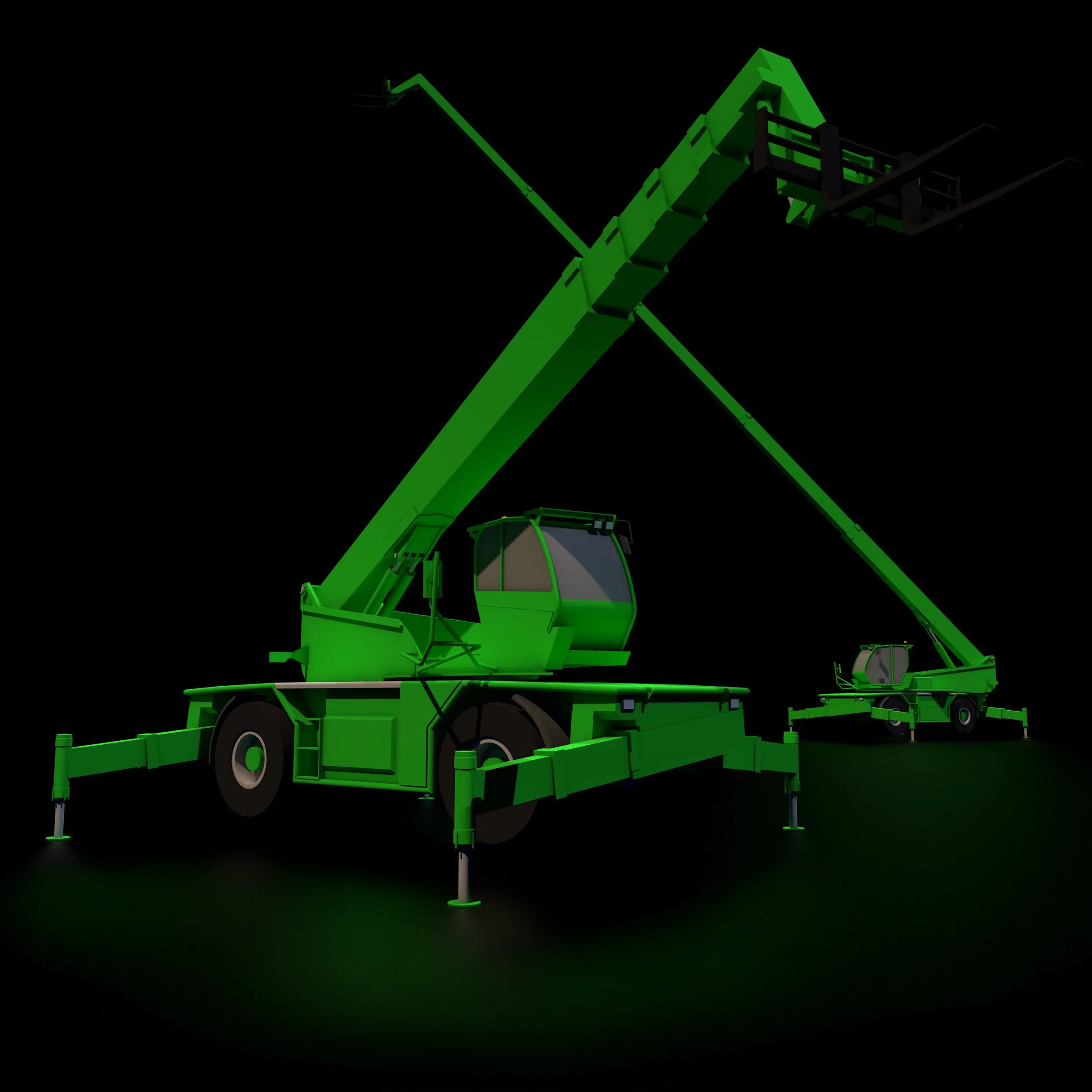

A user-editable Telehandler plug-in for VectorWorks, with options for model, arm placement, fork operation, etc. Available models are JLG-1255 , JLG-1055, Merlo 50.35, and Magni RTH 6.31.
The plug-in is hybrid 2D and 3D. The 2D portion is drawn with 2D shapes, not just a top-view of 3D geometry.
The Boom Lift plug-in was written in Vectorworks 2024 and should work in Vectorworks 2024 and up.
